Morse Hydra-Lift Karrier Drum Dumpers from Essex Drum Handling

Morse Hydra-Lift Drum Karriers

Safe drum handling requires well-designed, ergonomic drum handling equipment to minimize risks of injury or property damage.

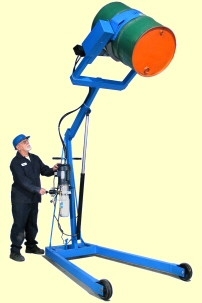

Morse Model 400A-96-110 shown has 8 foot maximum pour height and AC power lift and tilt.
Hydra-Lift Drum Karriers combine incredible strength with simple drum handling by one person.

Lift, move, tilt, raise and drain your heavy 55-gallon steel drum

Capacity

800 Lb. (363 kg) Full drum

500 Lb. (227 kg) Half Full Drum*

Handle drum with drum faucet in place

Pour height available with 60", 72" or 96" maximum

Other models and features are available

Hydra-Lift Karriers with Spark Resistant Parts

Also available are custom stainless steel drum handlers

A custom hydraulic drum dumper can be made for your requirements, such as special lift height, extended reach, off-size containers, special straddle width, etc.

It's a Cinch to handle almost any drum, with the

Automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter steel or fiber drum

Accepts MORcinch Options to handle your plastic drum

Accepts Diameter Adaptors for your smaller drums

Flexible chain cover helps protect the drum sidewall

For your protection includes safety covered gears

Has durable stress-relief weld joints for years of service

Hydra-Lift Karriers will NOT rack a drum. For drum racking, please see

Hydra-Lift Karrier with
Top Rim Clamp Option for your
rimmed 55-gallon drum.

Hydra-Lift Karrier with
Bracket Assembly Option
needed for rimless plastic drum.

Also recommended when
handling a fiber drum.

Hydra-Lift Karrier with
Diameter Adaptor

for handling a smaller drum.

Options

Top Rim Clamp to Handle

Top Rim Clamp to Handle Your Rimmed 55-Gallon Plastic Drum

The Top Rim Clamp grips the upper rim of your 55-gallon (208 liter) rimmed plastic drum to prevent it from slipping through the drum holder. The Top Rim Clamp can also be used with a 55-gallon rimmed fiber or steel drum. It bolts onto the MORcinch ^TM Drum Holder. Clamp it to the top rim of your drum, then secure the cinch chain around the drum as usual.

Part # 4560-P Rim Clamp Assembly.
Part # 4560M-P Spark Resistant Rim Clamp Assembly.
Part # 4560SS-P Stainless Steel Rim Clamp Assembly.

Rimless Plastic Drum

Bracket Assembly Required to Handle Your Rimless Plastic Drum

The Bracket Assembly is necessary for your plastic drum if it lacks a top rim. Recommended to more securely hold a fiber drum, also. It provides a brace at top and bottom of your drum to prevent it from slipping in the holder, and adjusts to handle a drum from 31" to 39" (79 to 99 cm) tall.

Part # 4556-P Bracket Assembly.
Part # 4556M-P Spark Resistant Bracket Assembly.
Part # 4556SS-P Stainless Steel Bracket Assembly.

Diameter Adaptors to Handle Your Smaller Drum

For a smaller diameter drum, Diameter Adaptors fit inside the drum holder. Installation is done easily without tools and are quickly removed.

Diameter Adaptors for 17.5" (44.5 cm) diameter or smaller have brackets at top and bottom of the drum.
They adjust for a drum up to 38" (96.5 cm) tall.

Spark resistant and stainless steel Diameter Adaptors are also available.

Morse Hyrda-Lift Drum Dumper on wheels to lift, move and pour drums

Morse Hydra-Lift Drum Lifter & Drum Dumper

It's a Cinch to handle almost any drum, with the
